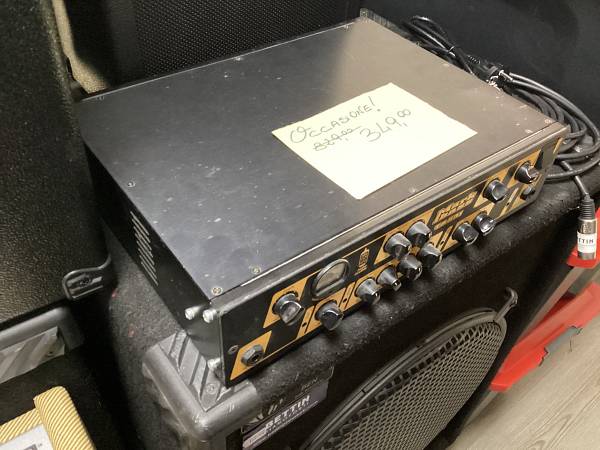

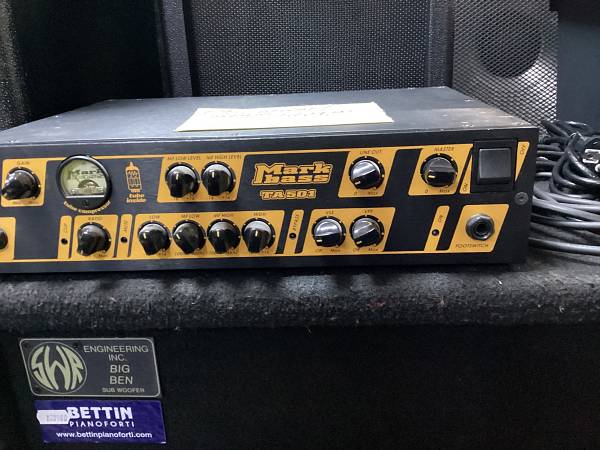

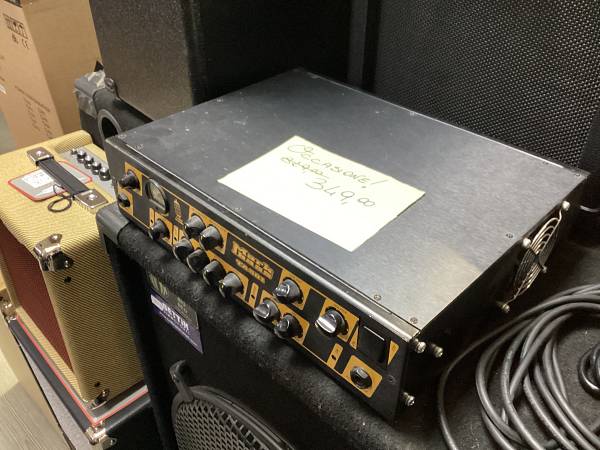

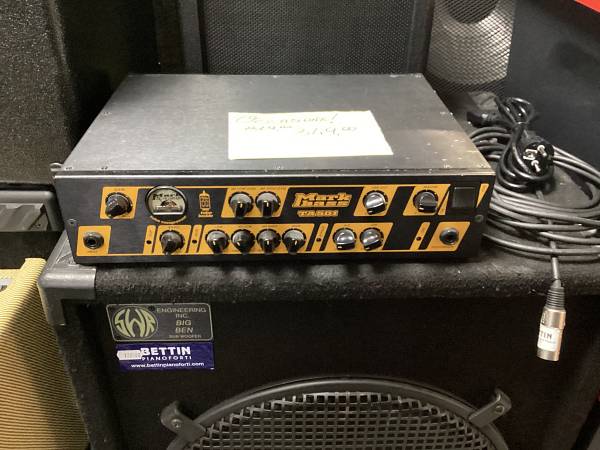

Markbass TA501 (Occasione/Usato)

TESTATA PER BASSO 500W 4 OHM – 300W 8 OHM CON COMPRESSORE VALVOLARE

L’equalizzatore della TA 501 è lo stesso della SA 450, con l’aggiunta di un vero compressore valvolare. I controlli sul retro di send e return permettono l’utilizzo di effetti esterni o altri segnali di ingresso. L’esclusione dell’equalizzatore e il mute sono controllabili anche dal footswitch.

INPUTS

• INPUT impedance: 500 Kohm, maximum voltage: 9 Vpp
• EFFECT RETURN impedance: 33 Kohm, maximum voltage: 12 Vpp

CONTROLS

• GAIN –80 dB to +25 dB range
• LINE OUT level control on front panel
• PRE/POST EQ (for line out) switch on rear panel
• GROUND LIFT switch on rear panel
• COMPRESSION RATIO 1:1 (off) to infinity:1 (limiter)
• MASTER VOLUME

EQUALIZATION

• LOW center frequency: 60 Hz; level ±16 dB
• LOW MID semi-parametric: frequency 100–800 Hz, level ±16 dB
• HIGH MID semi-parametric: frequency 700 Hz–6 kHz, level ±16 dB
• HIGH center frequency: 4.5 kHz, level ±16 dB
• VPF (Variable Pre-shape Filter) center frequency 380 Hz (cut)
• VLE (Vintage Loudspeaker Emulator) 250 Hz–20 kHz cut

OUTPUT

• EFFECT SEND unbalanced, max. voltage 12 Vpp (pre-EQ)
• TUNER OUT unbalanced, max. voltage 2 Vpp
• LINE OUT balanced XLR, max. voltage 25 Vpp
• SPEAKER OUT speakon, 1/4″

OTHER

• HEIGHT 2 standard rack units
• DEPTH 11.89 in. / 30.2 cm
• WEIGHT 8.16 lbs / 3.7 kg
• FOOTSWITCH mute; EQ bypass
• COMPRESSOR TUBE 1 x EECC81 (JJ Electronic)
• OUTPUT POWER 300W RMS @ 8 ohm, 500W RMS @ 4 ohm
• POWER REQUIREMENT 100/120V; 230V; 240V 50/60Hz
